Specifications:
Technical parameters :
|
TUBE SYSTEM |
Probe Diameter: |
4mm/6mm |
|
Tube Length: |
1.5m |
|
|
Camera pixels: |
1 mega pixels |
|
|
Image Resolution: |
1280 x 720 |
|
|
DOF: |
10-100mm |
|
|
FOV: |
120° |
|
|
Light Source: |
LED adjustable light |
|
|
Illuminance: |
25000Lx |
|
|
Protecting device of durability: |
80mm buffer protecting device on the connection between tube and handle |
|
|
Articulation: |
360 degree Joystick-control Articulation |
|
|
Bending Angle: |
More than 150° |
|
|
MONITOR SYSTEM
|
Structure: |
Handheld integrated design |
|
Display: |
3.5 inch IPS full view display |
|
|
Zoom in / out: |
5x |
|
|
Image Affect: |
Image freezing, cold/warm color |
|
|
Image Adjustment: |
Image sharpness, contrast, gama value |
|
|
Image/Video Format: |
JPEG, MP4 |
|
|
File Storage: |
Standard TF card: 16G, max: 64G |
|
|
Data Port: |
HDMI Video output, MICRO USB Port |
|
|
Wireless Image Transmission: |
Wifi ( optional) |
|
|
Battery: |
Detachable and rechargeable lithium battery |
|
|
Battery Capacity: |
3.7V, 3200mAh |
|
|
Battery Working Time: |
>= 3H |
|
|
Outer Case Material: |
Anti-fall engineering alloy material |
|
|
Water/ Dust Proof: |
Probe/tube: IP67, monitor:IP65 |
|
|
Accessories |
Standard Configuration: |
Case/videoscope/battery card reader/TF card/charger/USB cable/manual |
|
Optional : |
Extendable pole: 0.35-1.8m/mini HDMI cable/foldable tripod |

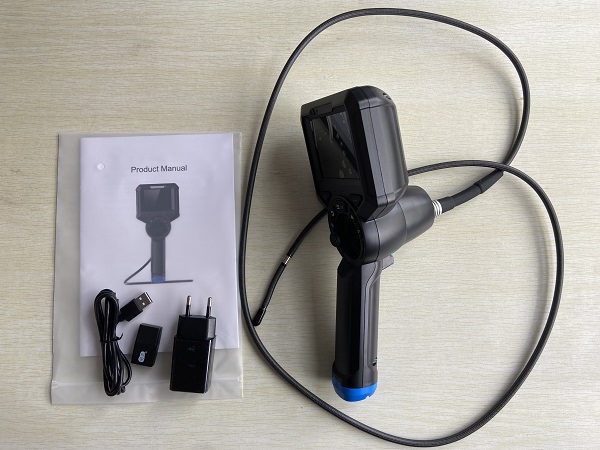

Accessory list:
|
Items |
Specifications |
Qty |
Unit |
|
1 |
Endoscope |
1 |
set |
|
2 |
USB cable |
1 |
pcs |
|
3 |
SD card（8GB） |
1 |
pcs |
|
4 |
Charger |
1 |
pcs |
|
5 |
Card reader |
1 |
pcs |
|
5 |
Cleaning kit |
1 |
set |
|
7 |
Manual |
1 |
pcs |
