Specifications:
1. Camera, and guide parameters
|
model |
NG801F |
||
|
Lens diameter |
Φ 8.0mm |
pixel |
Two megapixels |
|
Image sensor |
1/6inch |
angle of view |
90° |
|
Length of lens hardness |
25mm |
Observe the direction |
Front-end direct view |
|
Depth of field (visual distance) |
From 10-200 mm |
Lighting type |
Rear 5W optical fiber lighting |
|
thermostability |
300℃ |
Cooling pipe diameter hole |
8mm |
|
Camera shell |
alloy steel |
Insert tube material |
High-temperature stainless steel wire woven pipe |
|
The joystick controls with Directional direction |
Two directions |
Insert tube length |
Standard length 1 m (3 m) |
|
Bend Angle (upper / bottom / left / right) |
One-sided 180° |
Position fixed |
Internal mechanism resistance is fixed |
2. Display screen and system configuration
|
System weight |
The complete set of equipment includes the chassis: 6KG bare machine: 1KG |
Host size |
16 cm X, 14 cm X, and 4.5 cm |
|
source |
Lithium battery: 7.4V, 2600 maH adapter: output 100-240VAC 50 / 60HZ output 12VDC 2A |
construction material |
Pack-coated PC anti-fall shell |
|
LCD |
A 5-inch active matrix color display screen |
brightness control |
Manually adjust the 5 gear |
|
The Data I / O port |
HDMI port video output |
internal storage |
32G High-speed SD Card |
|
Key function |
Menu manipulation, videos, photos, snap, freeze, tone the lights |
white balance |
automatic white balance |
|
Image function |
Image mirroring, zoom, preview, zoom in |
linguistic support |
Support the language of 3 countries (Chinese, English, Traditional Chinese) |
|
Picture size |
1920x1080jpg |
Video size |
1920x1080mov |
3. Working environment
|
Host system operating temperature |
0°C〜40°C |
ambient humidity |
15-90%RH |
|
Video probe operating temperature |
0°C 60°C, below 0°C should reduce boot operations |
waterproof |
Probe and objective lens can withstand IP67 waterproofing |
|
storage temperature |
-0°C〜60°C |
|
|

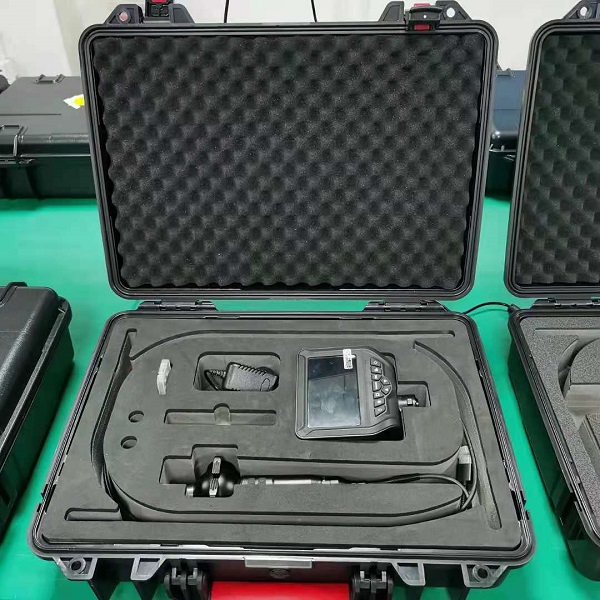

Accessory list:
|
Items |
Specifications |
Qty |
Unit |
|
1 |
Endoscope |
1 |
set |
|
2 |
Card reader |
1 |
pcs |
|
3 |
SD card（32GB） |
1 |
pcs |
|
4 |
Charger |
1 |
pcs |
|
5 |
Cleaning kit |
1 |
set |
|
6 |
HDMI cable |
1 |
pcs |
|
7 |
Cooler |
1 |
pcs |
|
8 |
Manual |
1 |
pcs |
