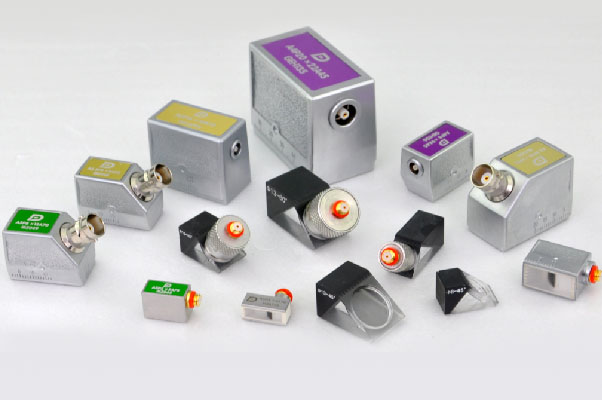

Angle Beam Probe

Refracting ultrasonic beams and generate shear or longitudinal waves to workpiece through a fix angle of delay line.

Features
· Ergonomic design, with durable cast housing

· Customizable any theoretical angles of ultrasound

· Probe face can be processed into different shapes to ensure good coupling with workpiece:

AID(Axial Inside Diameter) CID(Circumferential Inside Diameter)

AOD(Axial Outside Diameter) COD(Circumferrential Outside Diameter)

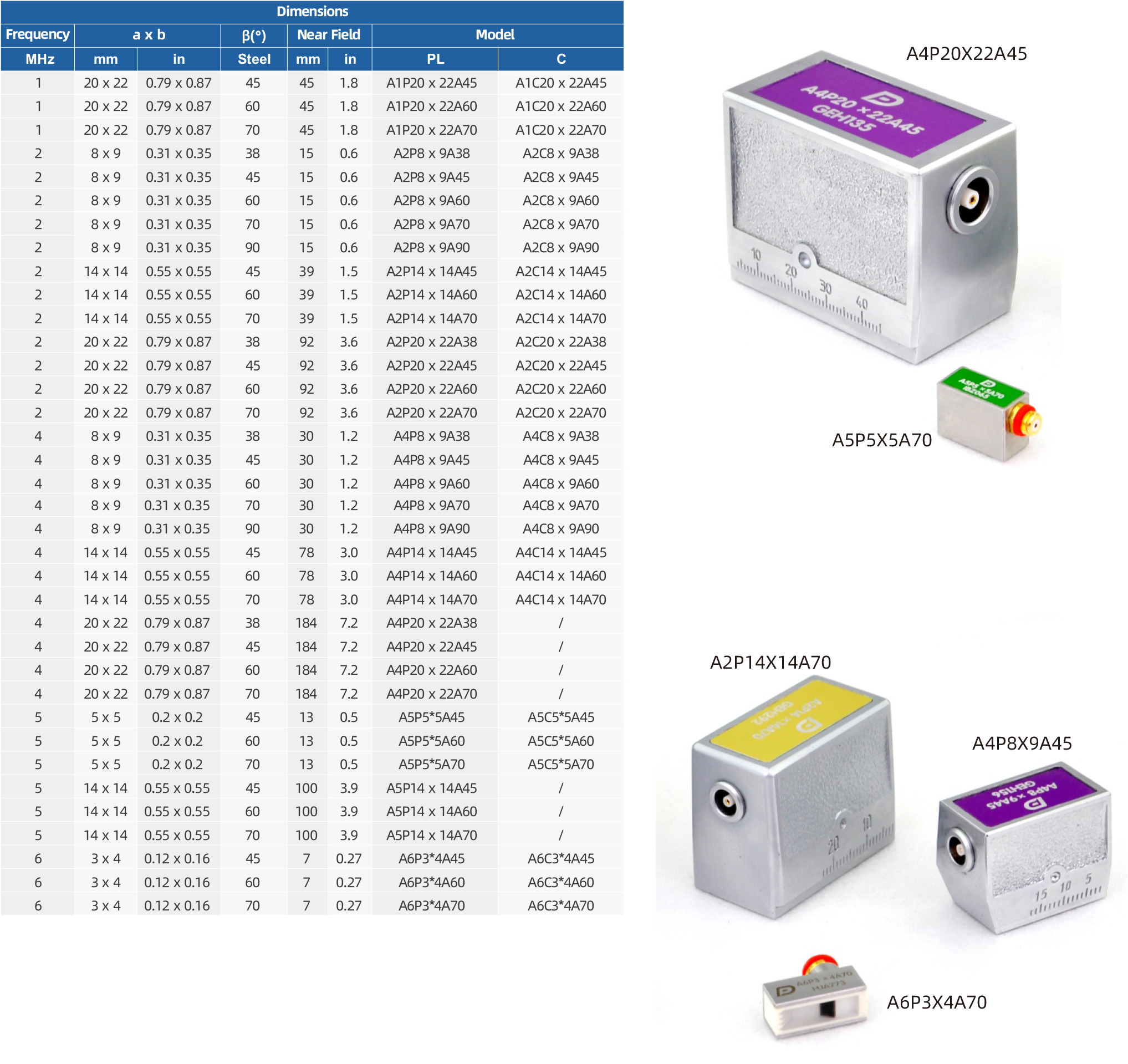

· Three types of performance can meet the most of detection needs：

· PL – Universal Series

· PH – Short Pulsing Series

· C – Composite Series

· PL – Universal Series

· C – Composite Series

Applications

· For Welding Inspection

· Pipes, Pressure Vessels, Storage Tanks

· Turbine Blades

· Wheel Axles, Castings, Forgings

· Bond Testing

· Railway Wheels and Tracks

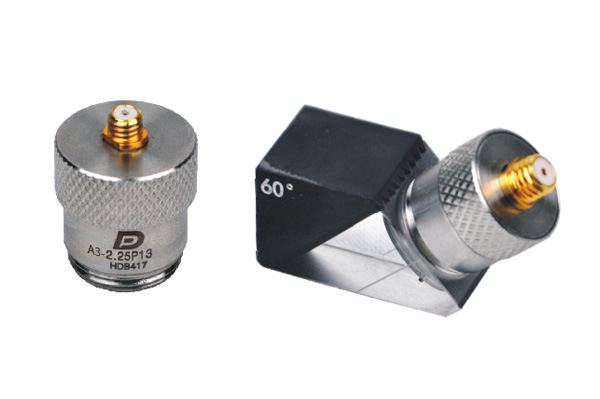

European Standard

· PL Series is the default probe type

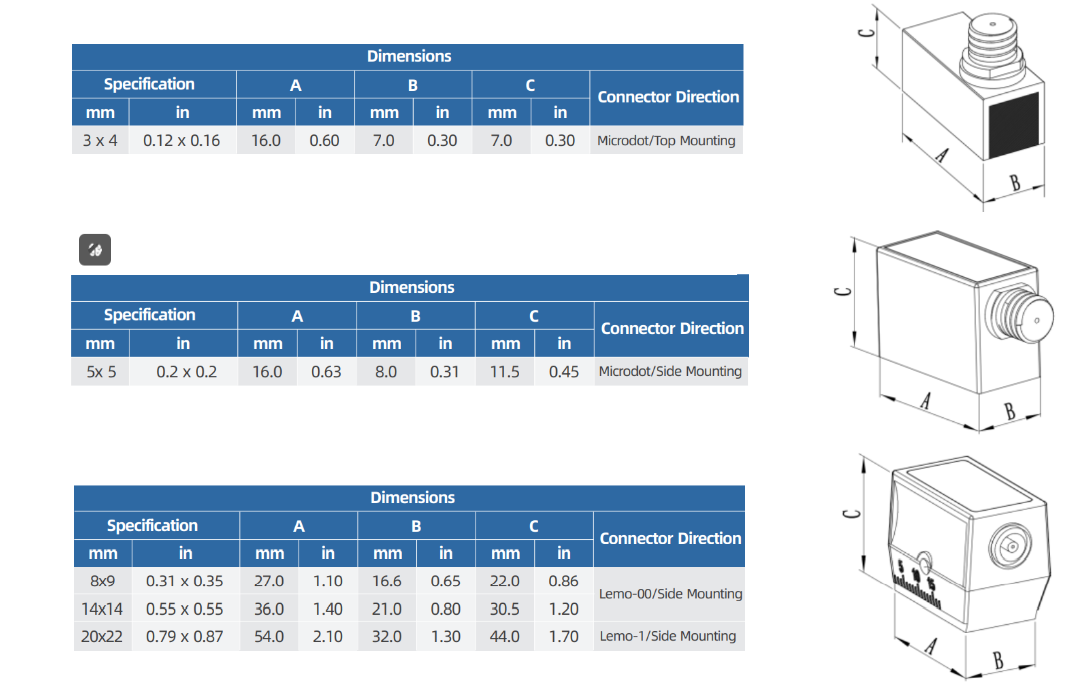

· Microdot(L5), Lemo 00(C5), and Lemo 01 (C9) Top Side Mounting Connectors, all models can be customized for Top mounting except size 3*4mm

North American Standard

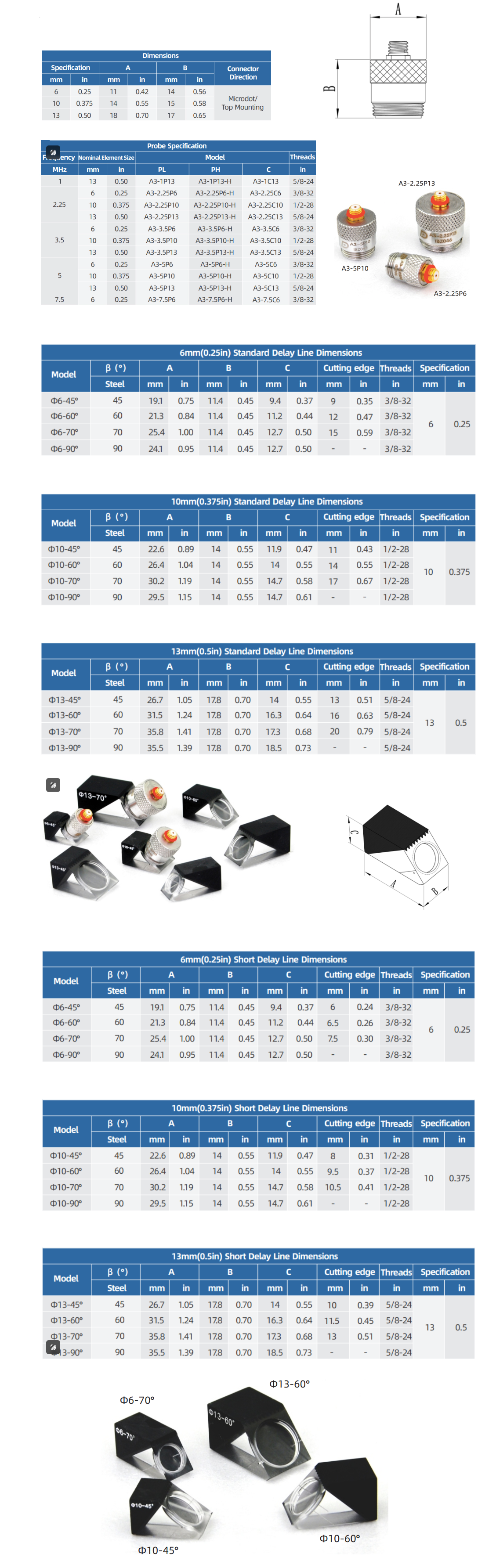

· Replaceable Delay Lines

· Delay Lines are divided into two types: standard cutting edge and short cutting edge

· Microdot (L5) Top Mounting Connector
