Specifications:
1. Camera parameters and system configuration
|
model |
CL801TC |
||
|
Lens diameter |
Φ 8.0mm |
pixel |
One megapixels |
|
Probe length |
13 mm |
Image sensor |
1/6inch |
|
Visual Angle |
120 Degrees |
Depth of field (visual range) |
From 10-100 mm |
|
illuminant |
8 LED light sources |
Observe the direction |
Front-end direct view |
|
major function |
wash |
Clean the joint pipe diameter |
2.0mm-2.4mm |
|
Insert tube material |
Stainless steel wire woven pipe |
Insert tube length |
Standard: 1.0m |
|
Bend Angle (upper / bottom) |
180° |
Position fixed |
One key lock |
|
image resolution ratio |
1280*720JPG |
Video resolution |
1280*720MP4 |
|
attended mode |
Android or Windows |
The Data I / O port |
The USB2.0 port is available |
|
Key function |
Take photos, turn on the lights |
internal storage |
computer. Mobile phone storage |
|
brightness control |
Manual adjustment, section 3 gear |
construction material |
Plastic PC case |
|
Product weight |
Including packaging equipment: <1.5 kg, bare machine: <0.5 kg |
white balance |
automatic white balance |
2. Working environment
|
System operating temperature |
0°C〜50°C |
ambient humidity |
15-90%RH |
|
Video probe operating temperature |
0°C 60°C, below 0°C should reduce boot operations |
waterproof |
The inserted tube and probe can withstand IP58 waterproof |
|
storage temperature |
0°C〜60°C |

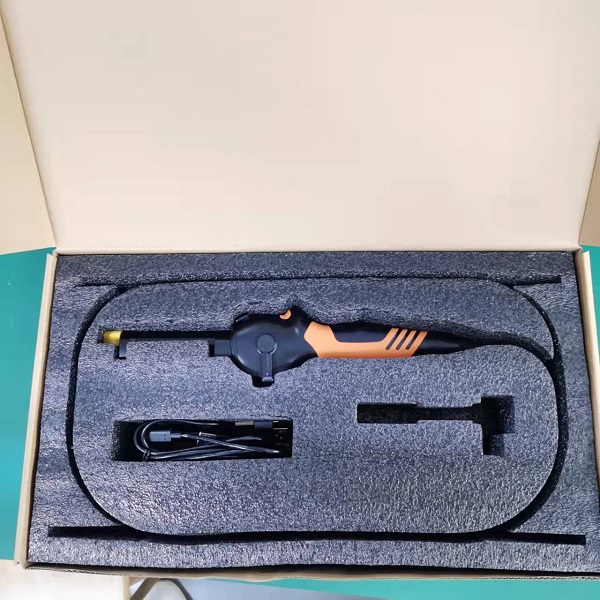

Packaging accessories |
hold-all. Clean the bag. Manual et al |
