Automatic PAUT Detection System for Bars

Automatic identification of defects and part sorting

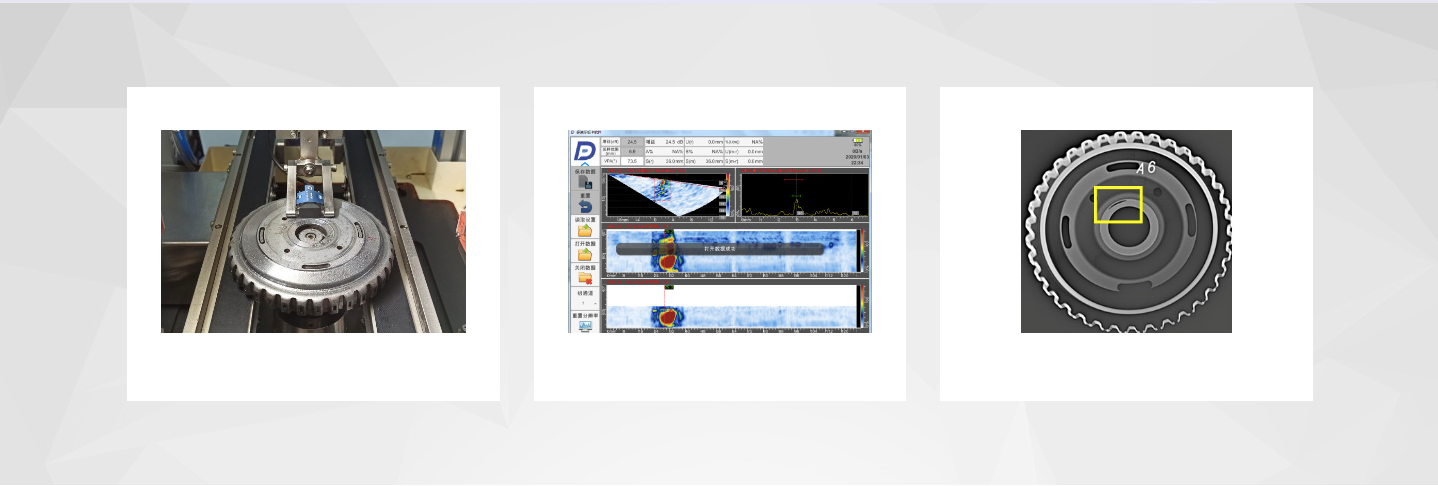

The system can realize the automatic detection of internal defects in the welding of the transmission gear. Based on phased array ultrasonic technology, a complete set of automatic system is designed, which can complete the detection and automatic sorting of a gear in 20 seconds. The equipment is composed of ultrasonic phased array board, ultrasonic phased array probe, industrial control computer, display, test bench, workpiece delivery mechanism, control cabinet, etc. The intelligent detection and sorting function greatly simplifies the system operation time and the difficulty of data analysis. At present, the system has been applied in mature automobile production line.
