CJE series miniature yoke detector, is to use the yoke to magnetization of ferromagnetic material artifacts of portable mini magnetic powder flaw detection equipment, to various parts of magnetization, suitable for oil field parts, coal, machinery, shipbuilding, internal combustion engine, standard parts, oil pump, nozzle, aircraft manufacturing, auto parts, chemical industry, boiler, pressure vessel, to build a bridge, railway and other industries products, caused by forging, quenching, welding, and fatigue of surface and near surface defects,Such as chain rod, crankshaft, bearings, high strength bolts, springs, forgings, petrochemical pipe fittings, valves, blades, gears, rollers, anchor chains and welding and other geometric complex workpiece flaw detection.
CJE series micro magnetic yoke flaw detector has ac, dc, ac and dc dual-purpose magnetic particle flaw detector.
The dc power supply is rechargeable battery, which is suitable for field operation without power supply and field operation of containers, Bridges and pipelines that cannot be entered by high voltage.
The continuous working time of a single charge can reach more than 6 hours.Ac power supply adopts ~220V power supply for direct input, no need for other instruments, easy to operate, simple, light weight, easy to carry, so the instrument has been widely used.
| Model | CJE-220AC Magnetic Yoke | CJE-12/220AC/DC Magnetic Yoke | CJE-12DC Magnetic Yoke | |
 |
 |
 |
||
| Power Supply | Connect to 220V directly | 220V50Hz 12V | 12V | |
| Charging Power Supply | 220V 50Hz | 220V 50Hz | ||
| Using Battery | / | MF12—7.2AH | ||
| Operating Current | AC1.4A | AC1.4A
DC1.7A |
DC1.7A | |
| Charging Time | / | 8~15h | 8~15h | |
| Battery Life | / | More than 6 hours | More than 6 hours | |
| Working Interval | 1 minute switch on
1 minute off |
1 minute switch on
1 minute off |
1 minute switch on
1 minute off |
|
| Magnetic Electrode Distance | 0~200mm | 0~200mm | 0~200mm | |
| Lifting power | A C | >5.5kg | >5.5kg | |
| D C | / | >26kg | >26kg | |
| Weight | Probe | 3.1kg | 3.1kg | 3.1kg |
| Battery package | / | 2.9kg | 2.9kg | |
| Outline dimension(mm) | Probe | 208×52×146 | 208×52×146 | 208×52×146 |
| Battery package | / | 160×70×100 | 160×70×100 | |
| Charger | / | 75×50×40 | 75×50×40 | |

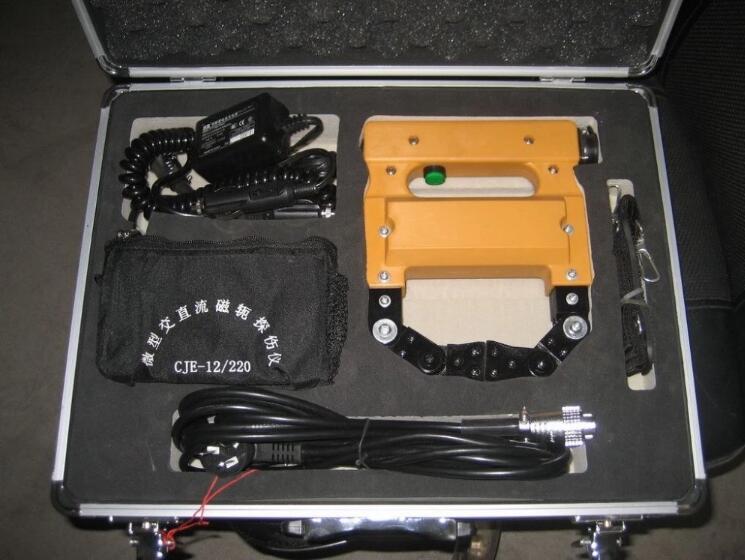

Packing List
| Yoke | 1 |
| Battery | 1 |
| Charger | 1 |
| Power Cable | 1 |
| Cables | 1 |
| Operation Manual | 1 |
| Certification | 1 |
| Packing Case | 1 |
