Specifications:

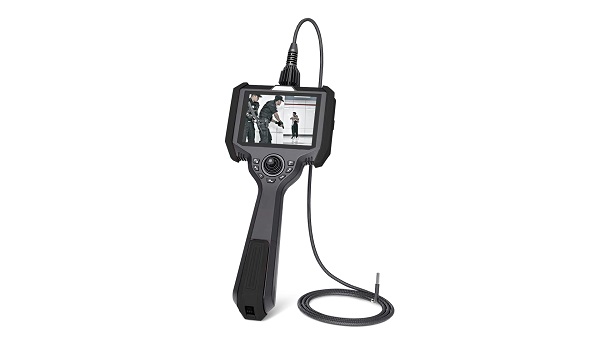

Military and police series infrared high-definition recording endoscope, equipped with 5-inch high-definition LCD screen, clearly visible;
This equipment is equipped with an ultra-far infrared high-definition camera, and the lens tip supports real-time recording. It can be used in criminal investigation, security inspection, EOD, anti-drug, anti-smuggling, search and rescue and other fields, with a wide range of applications.
|
Main Unit size |
350 x 155 x 59mm |
|
Display |
5.0 inch wide angle HD LCD Screen |
|
Storage |
Standard32G; Max 128G |
|
WIFI transmission |
WIFI Function, available for adding audio recording function on the lens tip |
|
Video output |
HDMI Port |
|
Image Control |
Frozen, Zooming, photographing, flipping, video playback, analog ruler functions |
|
System Languages |
Chinese, English,French,German,Spanish,Italian,Japanese |
|
Image/Video Format |
JPG\MP4 |
|
Bending Angle |
≤160° |
|
Pixel |
≥1MP |
|
Diameter |
Φ6.0mm |
|
Tube Length |
Standard 1.5m，1.5 – 5 mts is available |
|
Probe material |
Tungsten wire braided |
|
Battery Working |
≥4hours |
|
DOF |
IR & White Dual Lights 50 – infinity |
|
Illumination type |
Rear led fiber optical transmission illumination |
|
FOV |
90° |
|
Infrared wavelength |
No exposure 940nm \ Infrared exposure 850nm |
|
Articulation |
360° Degree |
|
System Working Temperature |
-10℃~50℃，no need preheating under low temperature |
|
Probe Working Temperature |
-20℃~70℃ |
|
Store Temperature |
-20℃~70℃ |
|
Relative humidity |
Max90%，no condensation |
|
IP level |
Probe Insertion Tube IP67, host IP54 |

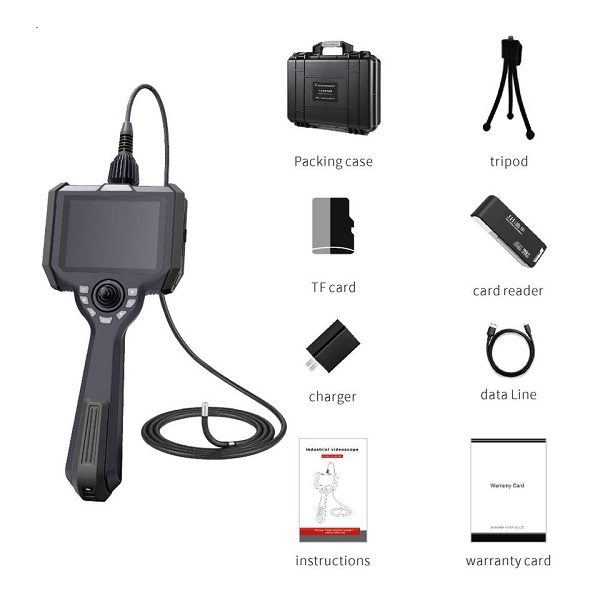

Accessory list:
|
Items |
Specifications |
Qty |
Unit |
|
1 |
Endoscope |
1 |
set |
|
2 |
Card reader |
1 |
pcs |
|
3 |
TF card（32GB） |
1 |
pcs |
|
4 |
Battery (18650) |
2 |
pcs |
|
5 |
HDMI cable |
1 |
pcs |
|
6 |
Charging adaptor |
1 |
set |
|
7 |
Manual |
1 |
pcs |
|
8 |
USB cable |
1 |
pcs |
