Delay Line Probe
With replaceable delay line at the front of probe, and Sound Wave Vertical Incidence into workpiece.
Features&Applications
Features
· Replaceable Delay Lines
· High Bandwidth and Narrow Pulse with Delay Line,
ensure excellent near surface resolution
· Higher Frequency increases resolution of detection
:Thickness of delay line decides the maximum thickness of workpiece, Doppler Provide 3 different thicknesses of delay lines to meet the most detection cases; Length and materials of delay line can be customized
Applications
· Direct Flaw Detection
· Precise Thickness Measurements
· Near Surface Flaw Detection
· Surface Detection of Curved Workpiece
· Ultra Thin Workpiece Detection
Specification and Model
Delay Line Probe
· Delay Line can be purchased separately
· Default Length of Delay Lines:
φ3mm(0.125in) Crystal Probe with 5.5mm(0.22in) Length of Delay Line
φ5/6/13mm(0.2/0.25/0.5in) Crystal Probe with 12.7mm(0.5in) Length of Delay Line
· Microdot (L5) Side Mounting Connector

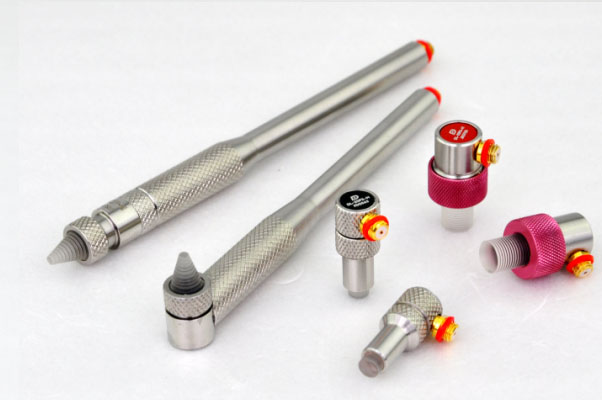

Delay Line Probe – Pen Type
· Replaceable Delay Lines
· Ultra Small Contact area of probe front, suitable for high bending surface detection, such as turbine blades
· 3Types Handle Bars: horizontal, 45° and 90°
· Replaceable Horizontal Handle Bar

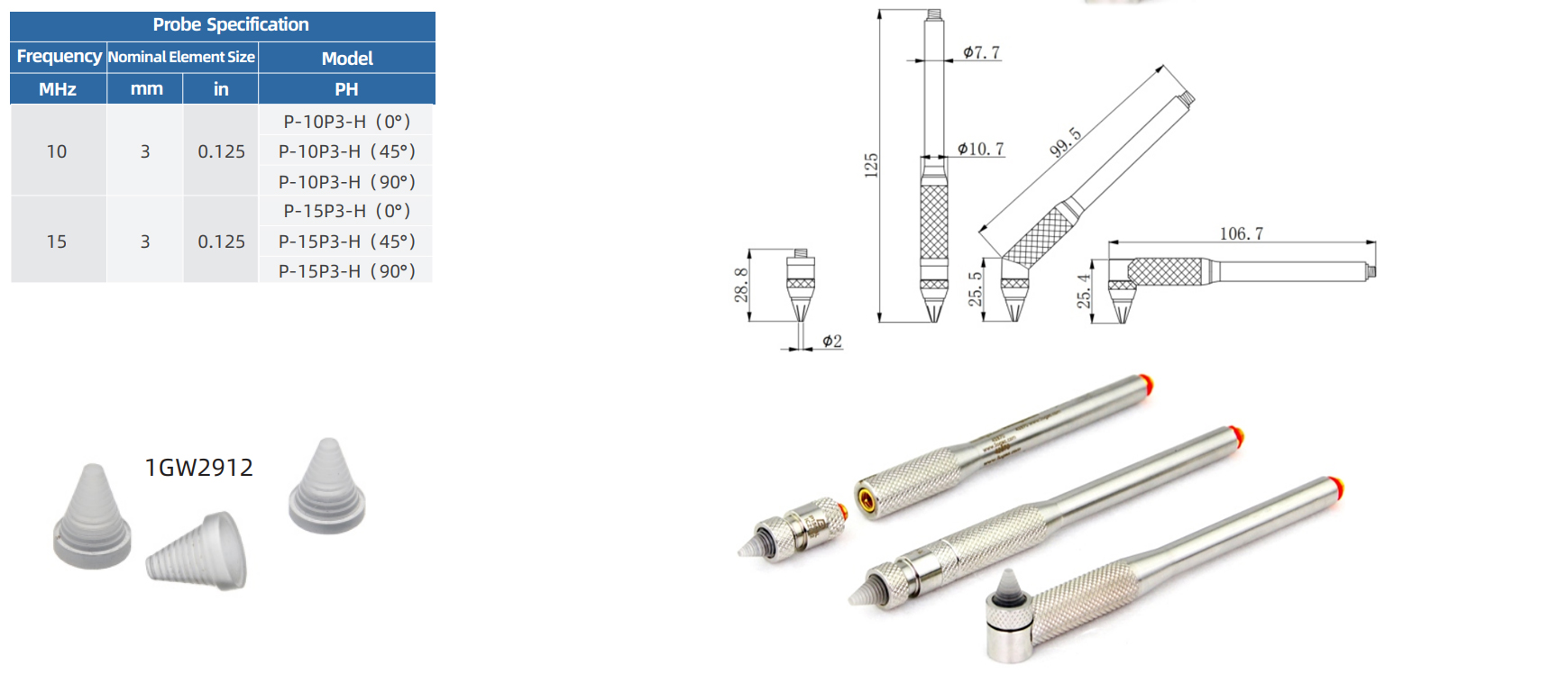

· Delay Line can be purchased separately, Model: 1GW2912
· Microdot (L5) Tail-end Mounting Connector
