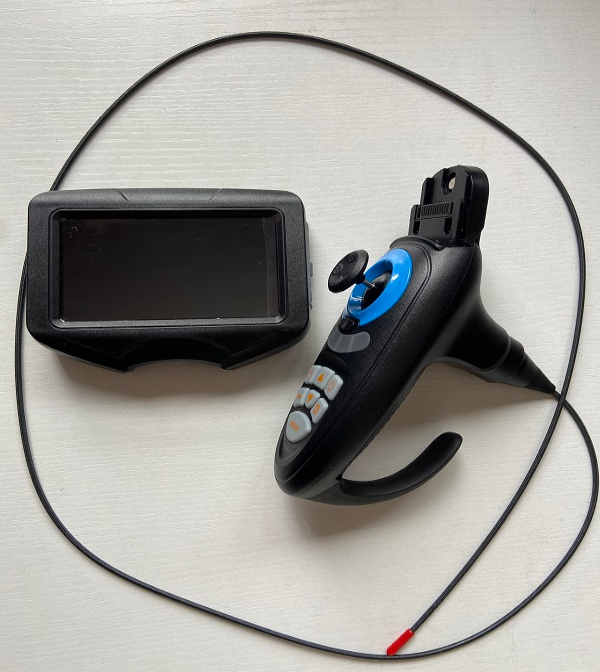

Specifications:
1，Camera parameters
|
model |
SZX301J |
external diameter |
Φ2.8mm |
|
pixel point |
At 160,000 pixels |
Probe length |
5 millimetre |
|
angle of field |
100 KWH |
Bend angle (top / bottom / left / right) |
180° |
|
depth of field |
5-50 millimetre |
Insert tube length |
Standard length is 1.2 m |
|
Observation direction |
foresight |
Insert pipe material |
wear-resistant tungsten wire weaving |
|
lighting |
15,000 Fiber-optic lighting |
|
|
2，Probe-oriented parameters
|
Rlever control and direction |
360° turn |
fixure |
Fixed internal resistance |
|
guide angle |
One side>, 90 ° |
Guide distance and length |
Standard 1 m.2 |
|
Axial control |
360 ° Axial rotation |
insert tube |
A 4-layer tungsten wire woven tube |
|
System weight |
Complete equipment including chassis: 2 kg bare machine: <1 kg |
Host size |
14.5 cm X 10.5 cm X 4.5 cm |
|
source |
Lithium battery: 3.7V,3600 maH |
construction material |
Plastic PC shell |
|
LCD |
Bright 4.5-inch active matrix color LCD display |
aiming |
Adjust the 4th gear manually |
|
The Data I / O port |
USB2.0 Port, WiFi |
internal storage |
16G High-speed SD Card |
|
Keybutton function |
Menu operation, video, photos. |
white balance |
automatic white balance |
|
Image function |
Image mirroring, zoom, preview, recording |
linguistic support |
Support for the 12 countries |
3. display and system configuration
|
Operating temperature of the host system |
-10 °C 50 °C, the LCD panel must be heated below 0 °C |
relative humidity |
Maximum of 90%, with no condensation |
|
Video probe operating temperature |
-20 °C 60 °C, below 0 °C should reduce boot operations |
waterproof |
Probe and objective lens can withstand IP67 waterproof |
|
storage temperature |
-20°C〜60°C |
|
|

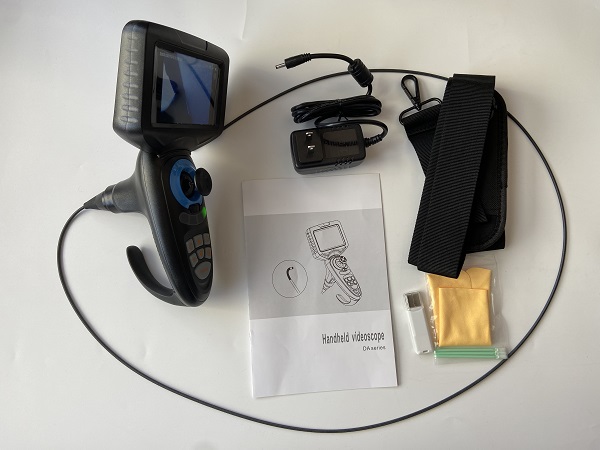

Accessory list:
|
Items |
Specifications |
Qty |
Unit |
|
1 |
Endoscope |
1 |
set |
|
2 |
Card reader |
1 |
pcs |
|
3 |
SD card（32GB） |
1 |
pcs |
|
4 |
Charger |
1 |
pcs |
|
5 |
Cleaning kit |
1 |
set |
|
6 |
Strap |
1 |
pcs |
|
7 |
Manual |
1 |
pcs |
