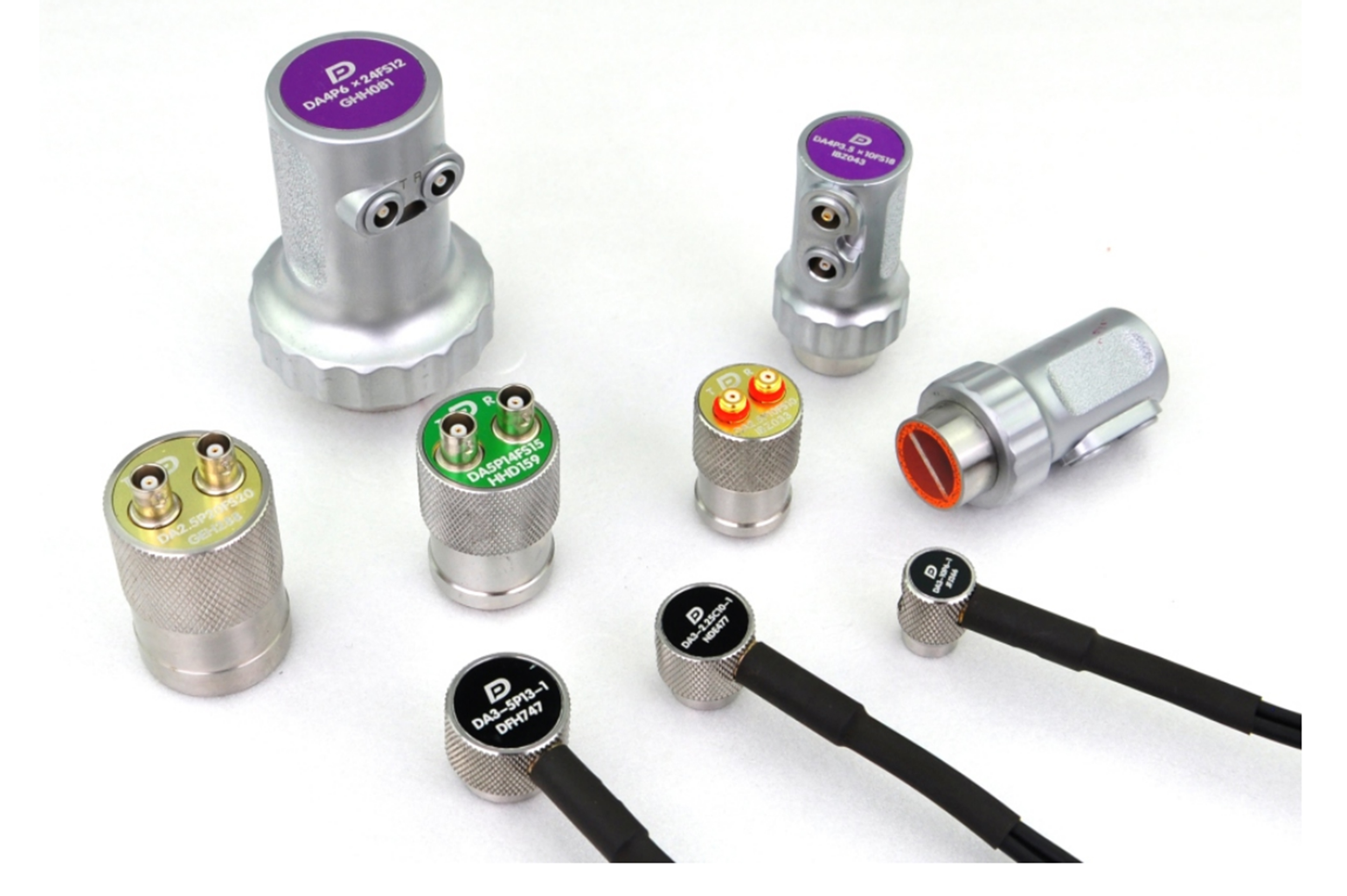

Dual Element Probe

Independent transmit and receive crystals, and creates a creates certain focal length in workpiece.

Features
· No initial pulse dead zone effects

· Less scattering, higher SNR in high attenuation material

· Good coupling on curved and rough surfaces

· Two types of performance probes can meet most of detection needs

· PL – Universal Series

· C – Composite Series

Applications

· Corrosion Monitoring

· Residual Wall Measurement

· Coating Measurement

· Near Surface Defects Detection

· Cracks, Porosities, impurity and Porosity detection of Forgings

· High Attenuation material Detection

European Standard

· PL Series is the default probe type

· Lemo 00(C5) Side Mounting Connector

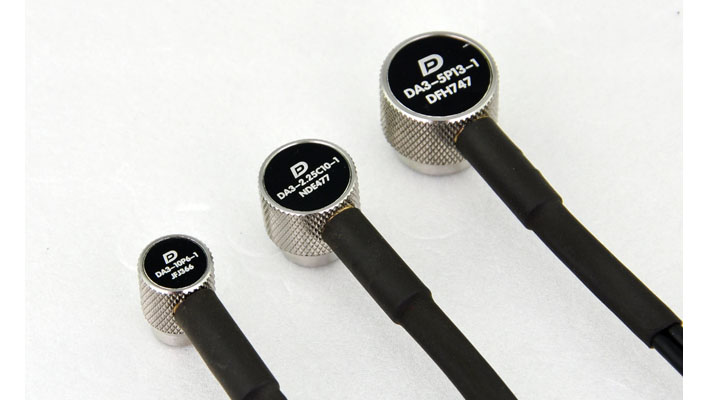

North American Standard

· Low height probes, suitable for narrow and limited detection environments

· Side Mounting with 1.8 meter cable length, cable end with Lemo 01(C9), or BNC(Q9) connectors(optional)
