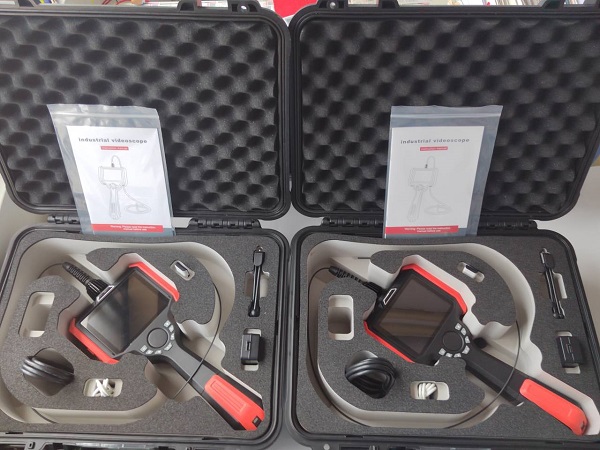

Flexible Industrial Borescope With Ultra-Thin Diameter 0.95mm/1.2mm/2.0mm/2.4mm/2.8mm, 5 Inch Monitor

Specifications:

Technical parameters:

Model

SZW095J

SZW121J

SZW201J

SZW241J

SZW301J

SZW401J

SZW601J

Lens diameter

Φ0.95mm

Φ1.2mm

Φ2.0mm

Φ2.4mm

Φ2.8mm

Φ3.9mm

Φ6mm

Pixels

160000                                      450000

1000000

Depth of field

3-70mm /   5-100mm /  8-150mm /   12-200mm  /50~infinity

Field of view

90°  120° 140°is optional

Lighting system

Rear high-power LED and optical fiber light

Articulations and bending angle

360 degree joystick rotation/bending angle more than 160°

Cable length

Standard 1m,other length is optional,max 10m

Probe working temperature

-20 ~70

Monitor

5 inch Wide-angle high-definition LCD screen

Monitor size

350*155*59mm

SD card

32G TF card

Video output

HDMI video output

Battery

rechargeable lithium battery pack,support online charging,Battery life≥4 hours

Waterproof

Host IP55, probe inserted tube IP65

System working temperature

-10-50, no preheating in low temperature

Relative humidity

Max 90%,no condensation

Picture/video format

JPG/MP4

Picture control

taking pictures, video recording,Freezing, zooming,photographing, flipping, video playback and analog ruler functions

System languages

Chinese,French,English,German,Spanish,Italian,Janpanese
