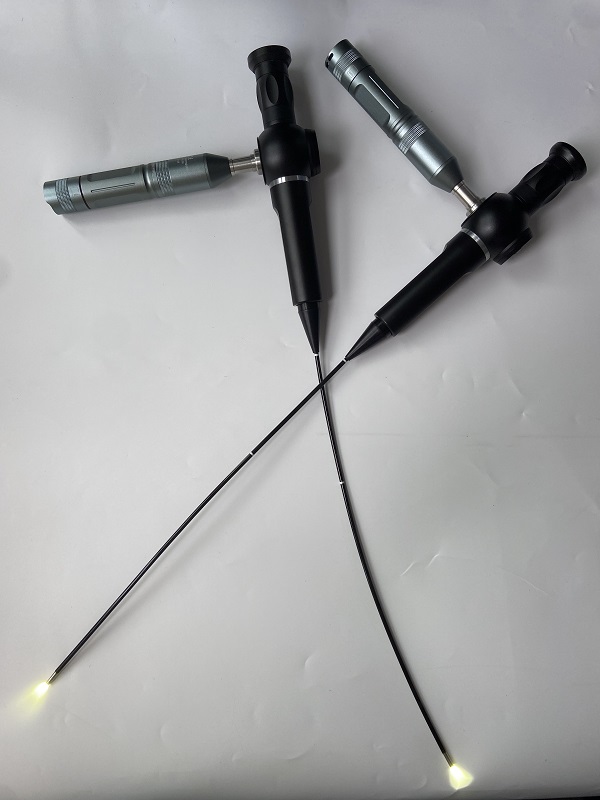

Insertion tube

1、camera lens diameter : 3mm

2、Tube cable length : 1000mm

3、Working hose material for the polyurethane coating hose, working hose waterproof, anti-oil .

Optic camera lens

1, the working hose inside the use of glass fiber transmission images

2, field of view angle: 70 °

3, viewing angle: 0 °

3, depth of field: 10mm ~ ∞

4, eyepiece magnification: 25 times

5, Image elements: 8000

Lighting terms

Work hose internal use of optical fiber transmission, the back-end to provide high-brightness LED light source lighting, brightness adjustable.

Viewing terms

Through the optical eyepiece can be directly observed, can also be added with endoscopic imaging system to achieve the display screen and observe the image of the camera, video storage.
