Specifications:
|

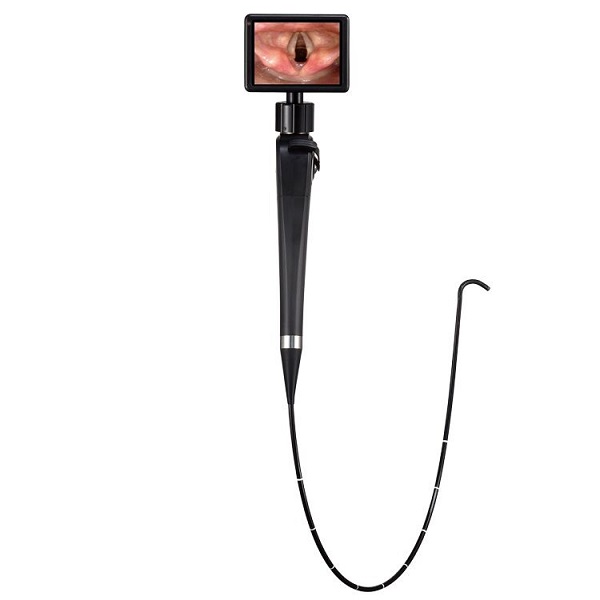

Flexible Video endoscope |
|||||
|
Item Number |
YK2800 |
YK3912 |
YK5226 |
YK5830 |
|
|
Outer Diameter |
2.8mm |
3.9mm |
5.2mm |
5.8mm |
|
|
working Channel |
0mm |
1.2mm |
2.6mm |
3.0mm |
|
|
Probe Length |
650mm |
650mm |
650mm |
650mm |
|
|
Probe |
|||||
|
Tip Articulation |
2 ways |
||||
|
Bending Angle |
160 up 130 down |
||||
|
Light Source |
LED Light Sources |
||||
|
Camera Lens View Angle(Fov) |
120°±5° |
||||
|
Focus Range |
3–50mm |
||||
|
camera pixel |
640×480 |
||||
|
Operating Temperature |
5°C to +40°C |
||||
|
Water Resistance |
IP67 |
||||
|
Device |
|||||
|
Screen |
3.5 inches LCD |
||||
|
Image device |
1/18″ High Color Sensor |
||||
|
sreen resolution |
640×480 |
||||
|
screen rotation angle |
Horizontal and vertical more than 120 deg |
||||
|
Video Input |
High Speed Differential Digital Video signal input |
||||
|
Video |
Motion JPG, Auto-Covering when Memory full |
||||
|
Photo |
Progressive Scan Storage,Clear Picture,Auto-Covering when Memory full |
||||
|
Storage |
built-in 8GB |
||||
|
led light color temperature |
More than 2300k |
||||
|
Image Freeze |
Support |
||||
|
Menu language |
13 kinds of Language options |
||||
|
Power input |
5V ，Li-3.7 |
||||
|
working time |
more than 4 hours after full charged |
||||
|

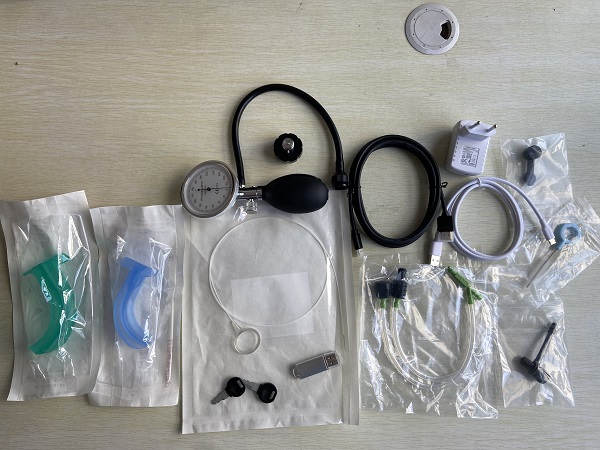

Accessory list |
|||||
|
Power adapter |
1 |
||||
|
USB data cable |
1 |
||||
|
HDMI cable |
1 |
||||
|
Leak detector |
1 |
||||
|
Suction valve |
1 |
||||
|
Intubation holder |
2 |
||||
|
Working channel cleaning brush |
1 |
||||
|
Pipe cleaning brush |
1 |
||||
|
Card reader |
1 |
||||
|
Product manual |
1 |
||||
