Specifications:
1，Camera parameters
|
Model |
SZY401T/SZY601T |
|
External diameter |
Φ4mm/6mm |
|
Probe length |
16 mm/13mm |
|
Pixel point |
One megapixel pixels |
|
View field angle |
120 ° |
|
Deep scenery |
10-100 mm |
|
Light source |
LED light source |
|
Observations |
Front view |
|
Insert pipe material |
Stainless steel woven belt |
|
Bend Angle (top / bottom) |
180° |
|
Insert tube length |
The standard length is 1 m |
Parameters of the 2. facing the probe
|
Joystick control and direction |
Two-direction steering |
Fixed position |
Fixed internal resistance |
|
Directive angle |
One-side> 90 ° |
Boot distance and length |
Standard 1 m |
|
Axial control |
180 ° axial rotation |
Insert the tube |
Stainless steel wire woven pipe |
|
System weight |
Complete equipment including chassis: 5 kg bare machine: <1 kg |
Host size |
14.5 cm X 10.5 cm X 4.5 cm |
|
Power supply |
Lithium battery: 3.7V,4200 maH |
Structural materials |
Plastic PC housing |
|
LCD screen |
Bright 4.5-inch active matrix color LCD display |
Tuning |
Manual adjustment |
|
Data I / O port |
USB2.0 port, WiFi wireless connection |
Memory |
32G High-Speed SD Card |
|
Keybutton function |
Menu operations, videos, photos, snap |
White balance |
Automatic white balance |
|
Image function |
Image mirror, preview |
Language support |
Support for 12 countries |
2. display and system configuration
|
Operating temperature of the host system |
-10 °C 〜50 °C, LCD panel must be heated below 0 °C |
Relative humidity |
Maximum of 90%, with no condensation |
|
Operating temperature of the video probe |
-20 °C 〜60 °C, below 0 °C should reduce boot operations |
Waterproof |
Probes and objective lenses can withstand IP67 waterproof |
|
Storage temperature |
-20°C〜60°C |
|
|

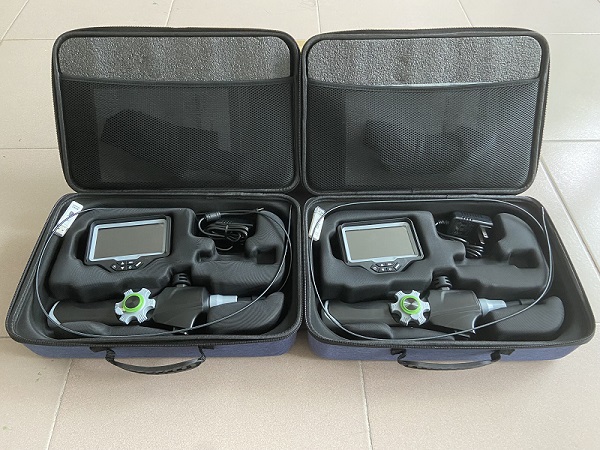

Accessory list:
|
Items |
Specifications |
Qty |
Unit |
|
1 |
Endoscope |
1 |
set |
|
2 |
Card reader |
1 |
pcs |
|
3 |
SD card（32GB） |
1 |
pcs |
|
4 |
Charger |
1 |
pcs |
|
5 |
Cleaning kit |
1 |
set |
|
6 |
Strap |
1 |
pcs |
|
7 |
Manual |
1 |
pcs |
