Specifications:
1，Camera parameters
Probe cable length : 1.0 M(standard), 2m/3m is optional ; Camera lens diameter : 6.0mm/8.5mm . |
||
|
Sensor size |
1/9” CMOS |
|
|
Color sensor pixels |
1000,000 |
|
|
Camera length |
12mm |
|
|
Depth of field |
20mm — 100mm |
|
|
Light source |
6pcs/10 pcs LED lights，4 level adjustable |
|
|
Bending radius |
30mm |
|
|
Camera rotation |
2 way articulations, more than 180 deg |
|
|
Field of view |
100° |
|
|
resolution |
1280×720 |
|
|
Monitor |
4.3” IPS display |
|
|
SD card |
8GB (Max : 64GB) |
|
|
Video format |
MPEG4 |
|
|
Picture format |
JPEG |
|
|
Video recording format |
ASF |
|
|
Video output |
AV |
|
|
Languages |
Chinese, English,French,Spanish,Korean,Japanese |
|
|
Picture/video return function |
support |
|
|
Oil/Waterproof standard |
IP67 |
|
|
Battery |
Li-Ion Battery (2600mAh),work time over 4 hours |
|
|
Working temperature |
-20 — 60°C |
|
|
Charging temperature |
0—40°C |
|
|
Accessories |
Charger，Manual，USB cable, waterproof tool box |
|
|
Application |
cars, ships, and aircraft engines inspection,gearbox、combustion-chamber deposit、Air conditioning evaporation box cleanliness, etc |
|
|
Temperature protection technology |
>90°C,auto power off, when it touches a high temperature (over 90°）power failure protection, avoiding camera broken |
|
|
Support |
When remove screen, which can connect with andorid phone/ diagnostic tool /computer for inspection. |
|
Accessory list:
|
Items |
Specifications |
Qty |
Unit |
|
1 |

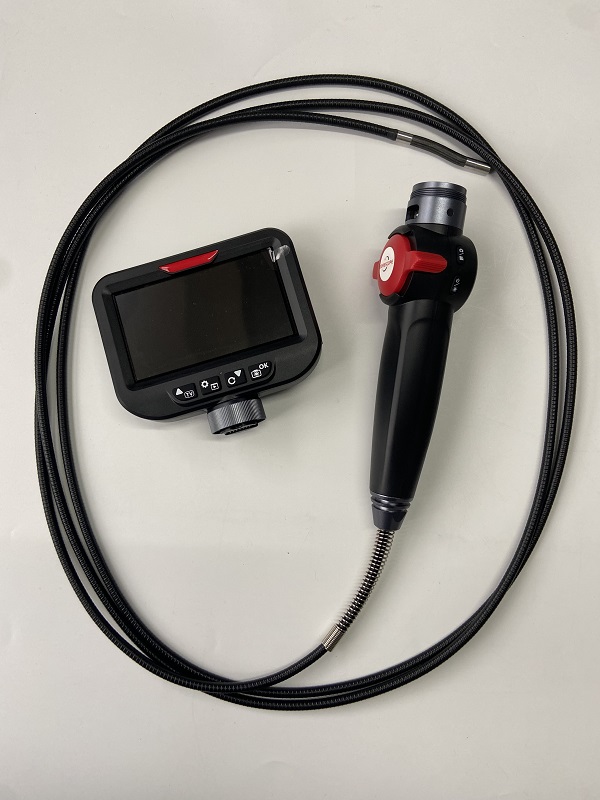

Endoscope |
1 |
set |
|
2 |
USB cable |
1 |
pcs |
|
3 |
SD card（8GB） |
1 |
pcs |
| 4 |
Cleaning kit |
1 |
set |
| 5 |
Manual |
1 |
pcs |
