Model

SZY801T

External diameter

Φ 7.5mm

Pixel point

One megapixel pixels

View field angle

120 °

Deep scenery

5-50 mm

Light source

LED light source

Observations

Front view

Probe length

18 mm

High temperature resistance

300 °

Insert pipe material

Stainless steel woven belt

Bend Angle (top / bottom)

180°

Insert tube length

The standard length is 1 m

Joystick control and direction

Two-direction steering

Fixed position

Fixed internal resistance

Directive angle

One-side> 90 °

Boot distance and length

Standard 1 m

Axial control

180 ° axial rotation

Insert the tube

High-temperature-resistant woven pipe

System weight

Complete equipment including chassis: 5 kg bare machine: <1 kg

Host size

14.5 cm X 10.5 cm X 4.5 cm

Power supply

Lithium battery: 3.7V,4200 maH

Structural materials

Plastic PC housing

LCD screen

Bright 4.5-inch active matrix color LCD display

Tuning

Manual adjustment

Data I / O port

USB2.0 port, WiFi wireless connection

Memory

16G High-Speed SD Card

Keybutton function

Menu operations, videos, photos, snap

White balance

Automatic white balance

Image function

Image mirror, preview

Language support

Support for 12 countries

Operating temperature of the host system

-10 °C 〜50 °C, LCD panel must be heated below 0 °C

Relative humidity

Maximum of 90%, with no condensation

Operating temperature of the video probe

-20 °C 〜300 °C, below 0 °C should reduce boot operations

Waterproof

Probes and objective lenses can withstand IP67 waterproof

Storage temperature

-20°C〜60°C

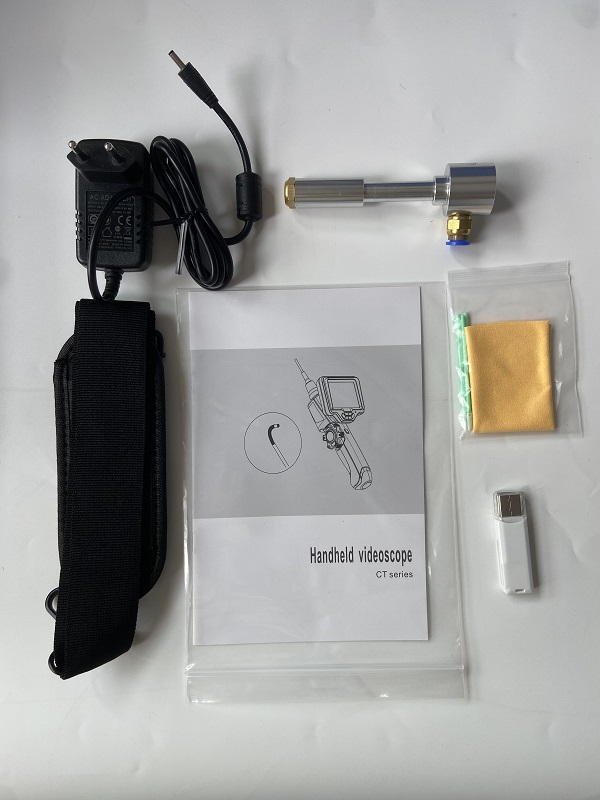

Items

Specifications

Qty

Unit

1

Endoscope

1

set

2

Card reader

1

pcs

3

SD card（32GB）

1

pcs

4

Charger

1

pcs

5

Cleaning kit

1

set

6

Strap

1

pcs

7

Cooler

1

pcs

8

Manual

1

pcs
