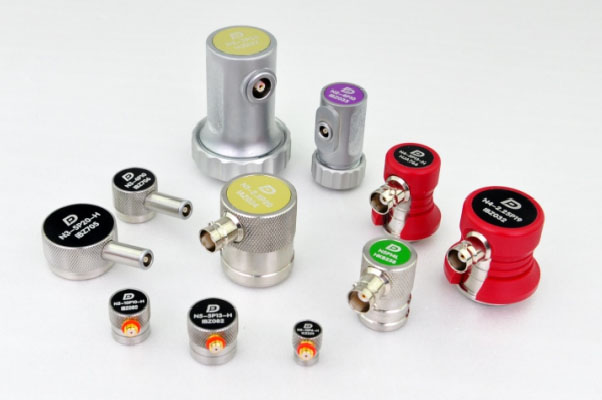

Normal Beam Probe

A single crystal transducer, Sound Wave Vertical Incidence and direct contact.

Features
· Wear resistant stainless steel housing

· Wear resistant front end protective layer, long service life

· Good match acoustic impedance with most metals

· 3 types of performance to meet the cast majority of testing requirements

Applications

· Simple structure of metals

· Large plates, bars, forgings, metals and non-metals

· Small tanks, pipes, castings, bars

· Sandwich and laminated structures

· Materials velocity and characteristics

· Coarse grain or high attenuation materials

European Standard Probes – N2

· Microdot(L5), Lemo 00(C5), and Lemo 01(C9) Side Mounting Connectors

For above φ5 can be customized as Top Mounting Connector

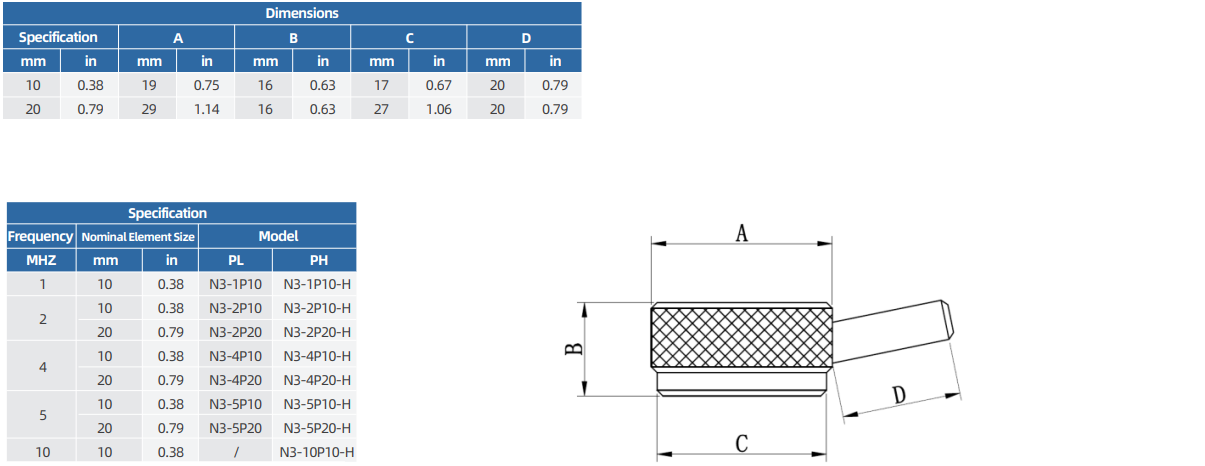

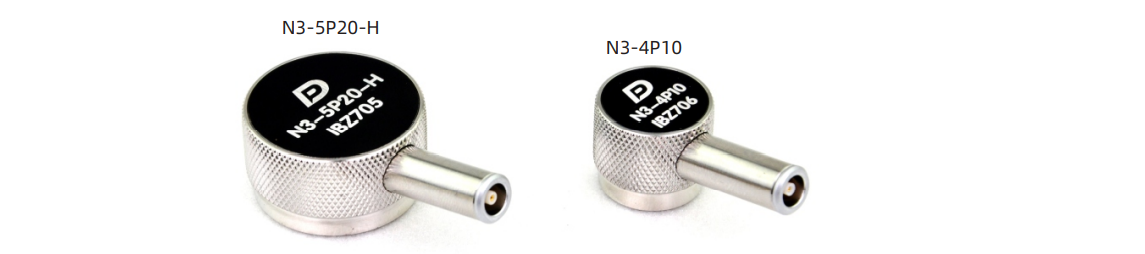

European Standard Probes – N3

· Low height probes, suitable for narrow and limited detection environments

· Lemo 00 (C5) Side Mounting Connector, with handle bar

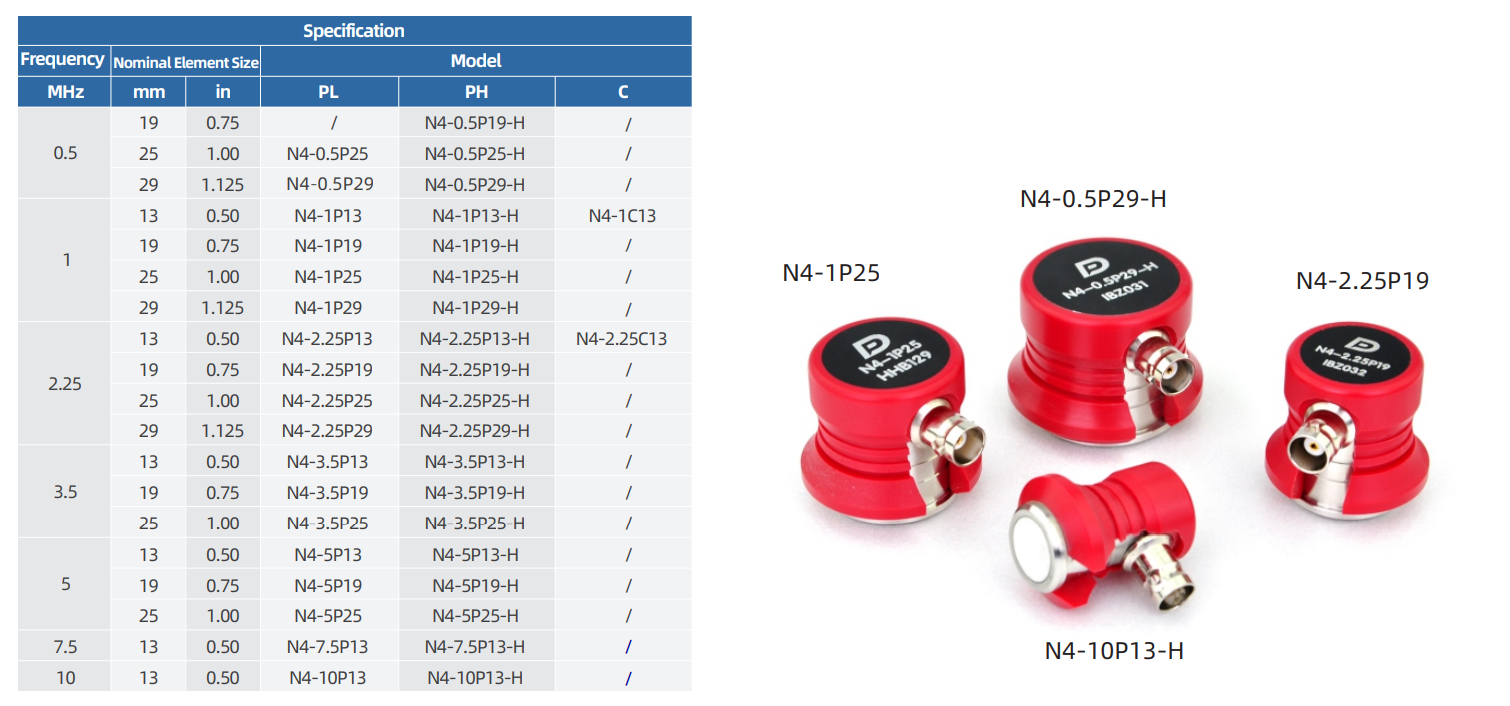

North American Standard – N4

· Large crystal diameter to ensure high sensitivity of probe, and wider coverage area of detection

· BNC(Q9) Side Mounting Connector, can be customized as Top Mounting Connector

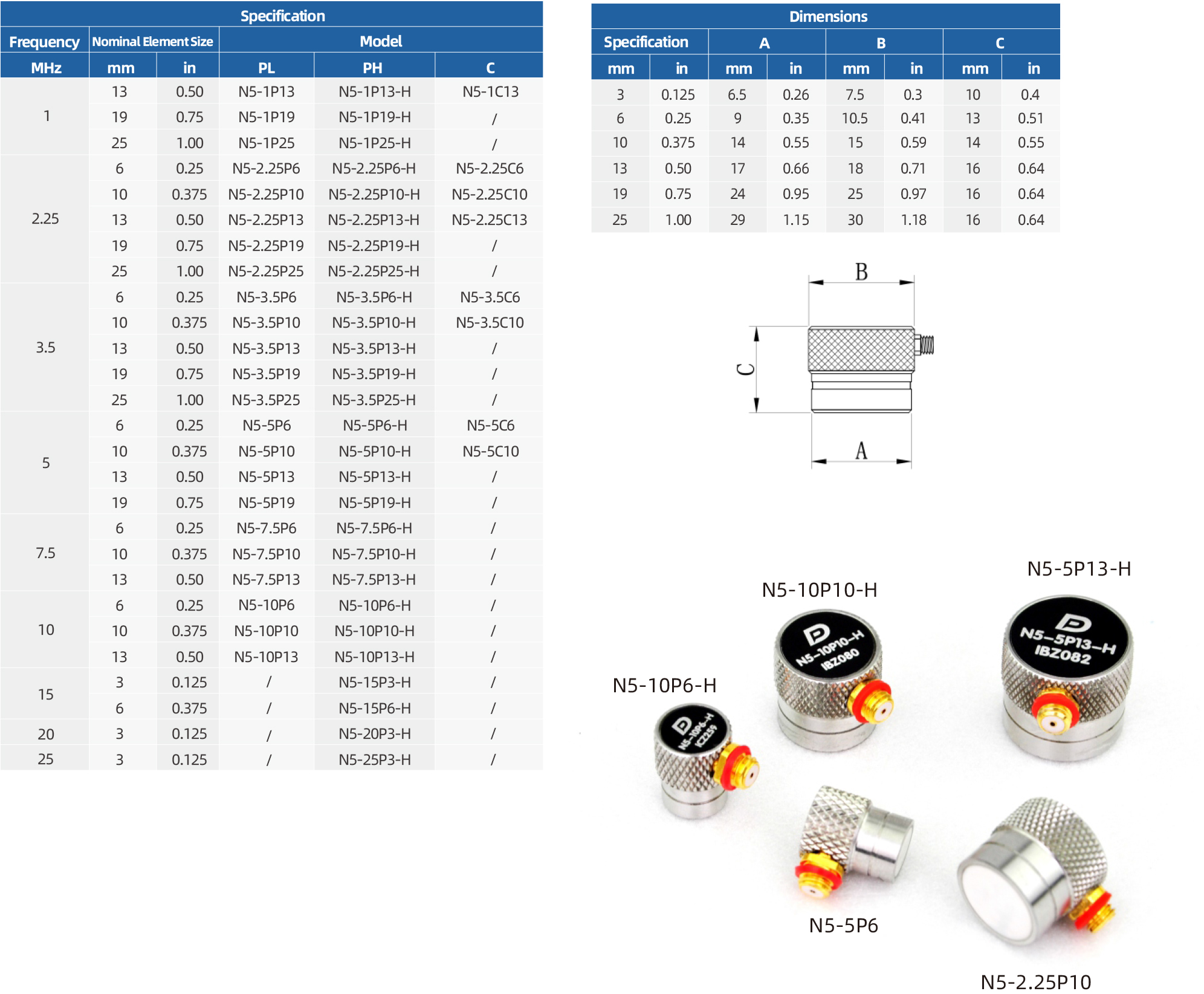

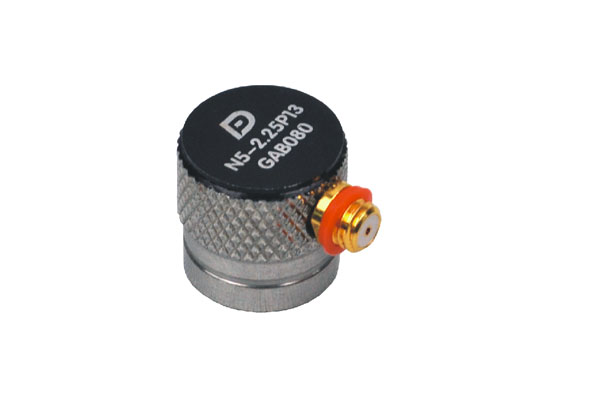

North American Standard – N5

· Low height probes, suitable for narrow and limited detection environments

· Lemo 00(C5) side mounting connector, with handle bar

· Can be customized as top mounting connector
