Specifications:
|
Technical parameters |
||
|
Parts |
Description |
Technical Index |
|
Machine |
Display |
4.5” touchable LCD |
|
Resolution Ratio |
1920*1080 |
|
|
Viewing Angle |
>60° |
|
|
Power |
<2W |
|
|
Display front and back left & right rotation angle |
0°~150° 0°~270° |
|
|
Weight |
130g |
|
|
Camera |
Illuminance |
>400 LUX |
|
Resolution Ratio |
1280*720 px |
|
|
Image/ Video Function |
Image / Video function |
Yes |
|
Output: |
Type C output |
|
|
Memory type |
Micro SD card 16GB |
|
|
Battery |
Battery type |
Rechargeable lithium battery |
|
Capacity |
3300mAh |
|
|
Cycle life of battery |
>1000 times |
|
|
Battery working time |
>5(hrs) |
|
|
Charging Time |
<4(hrs) |
|
|
Charging Port |
Type C |
|
|
Power Adapter |
Input |
100-240V, 50/60Hz. |
|
Output |
5V2A |
|
|

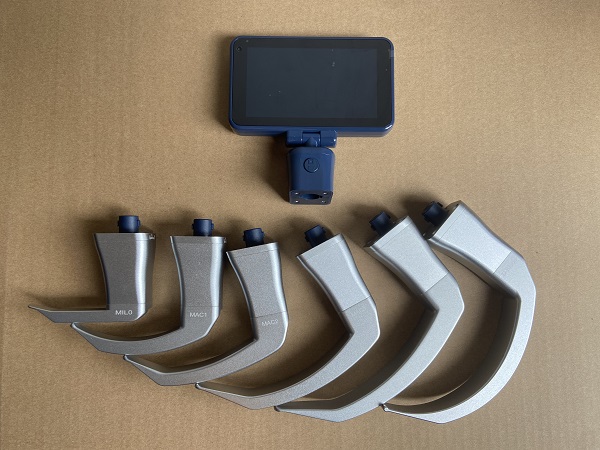

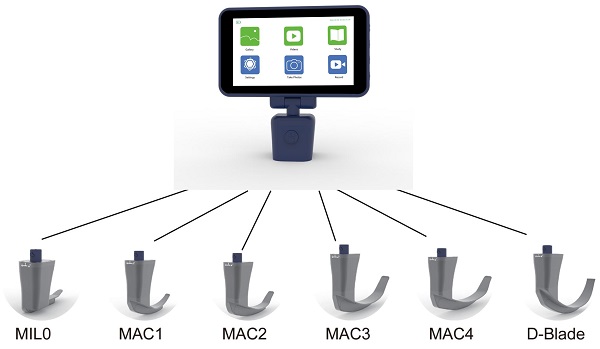

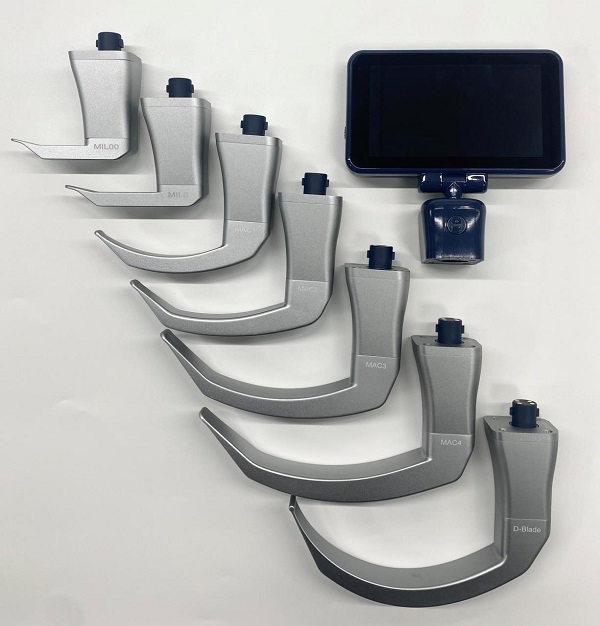

Blade |
MILO |
MAC1 |
MAC2 |
MAC3 |
MAC4 |
D blade |
|
|
Application |
Neonate |
Pediatric |
Small Adult |
Adult |
Large Adult |
Difficult airway |
|
|
Intubation Inner Diameter |
2.5-4.0mm |
4.0-6.0mm |
5.0-6.0mm |
6.0-9.0mm |
7.5-10.0mm |
7.5-10.0mm |
|
|
Length (cm) |
8.2 |
10.45 |
12.11 |
14.25 |
16.08 |
13.27 |
|
|
Sterilize Method |
2.0% Glutaral fully soak for 10 minutes Or 0.5%-0.6% Cidex OPA for more than 5 minutes |
||||||
