Probe Cables

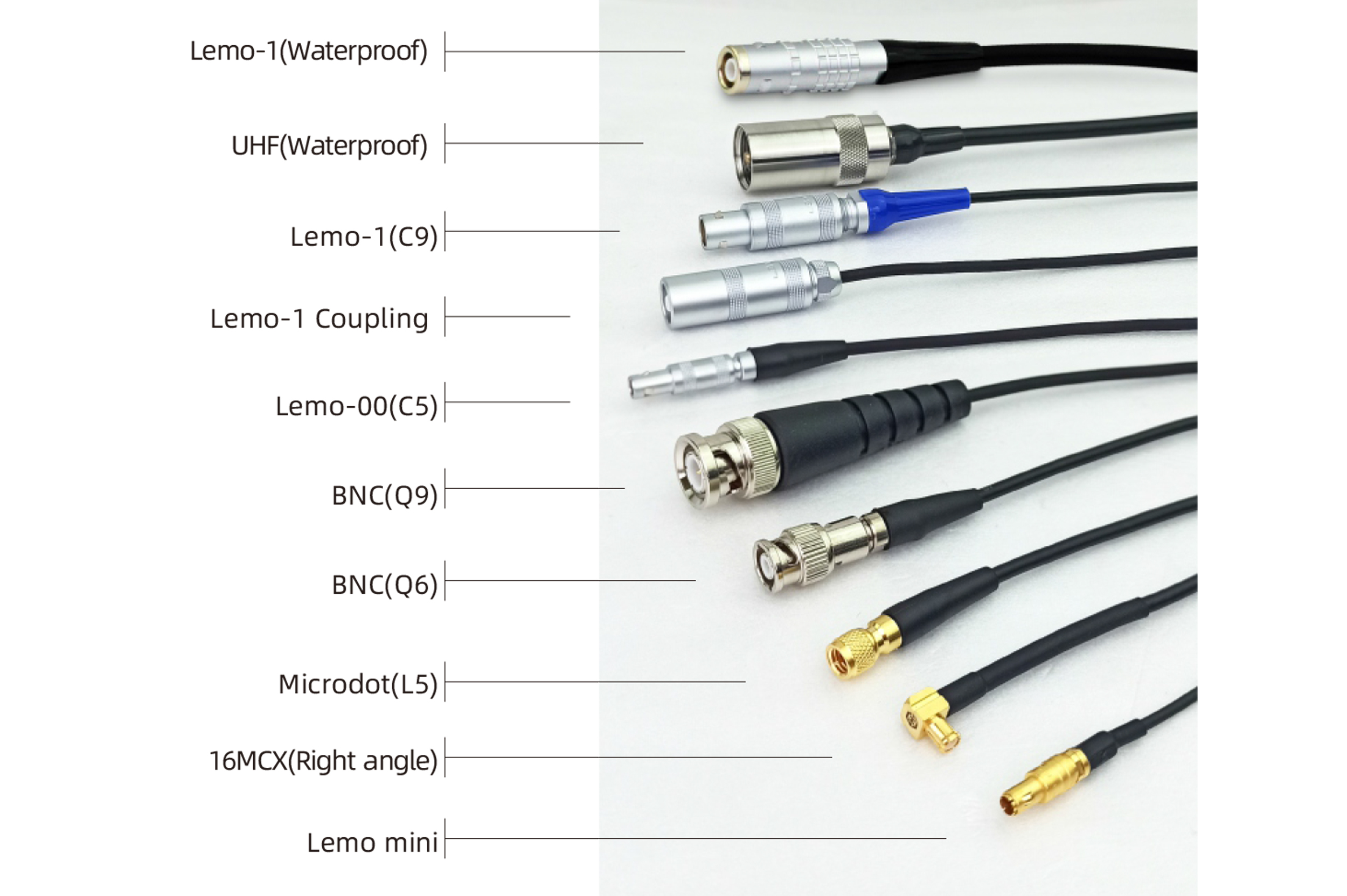

The probe cable is composed of a coaxial cable (wire + insulating layer + shielding network) and two connectors respectively connecting the probe and the instrument, which is used for electrical signal transmission between instrument and probe. Commonly used connectors include BNC (Q9), Microdot (L5), Lemo-00 (C5), Lemo-1 (C9), etc. Coaxial cable include RG174, RG178, RG 316, RG58, etc. Unless specified, the impedance value of all cables is 50 ohms.

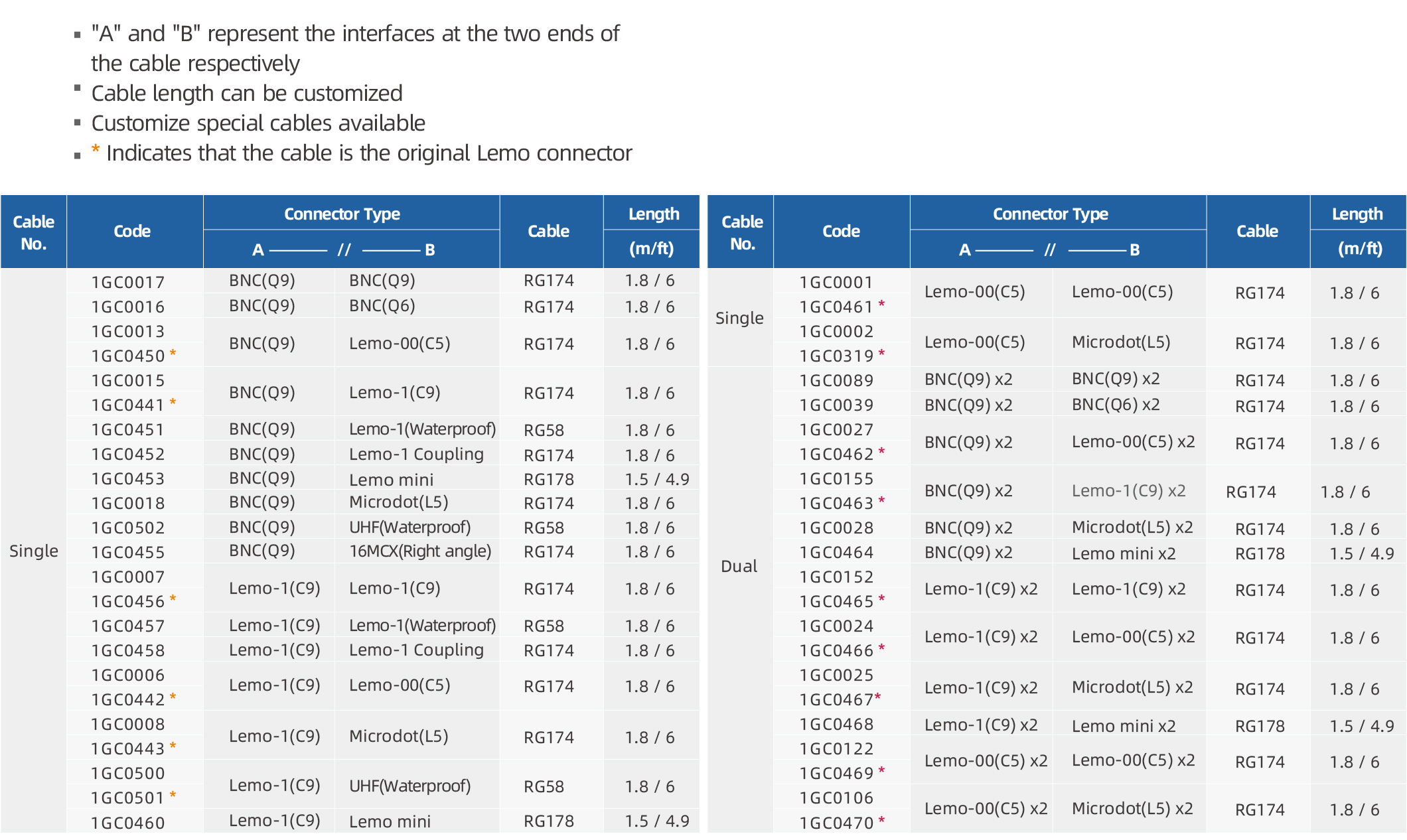

Performance
