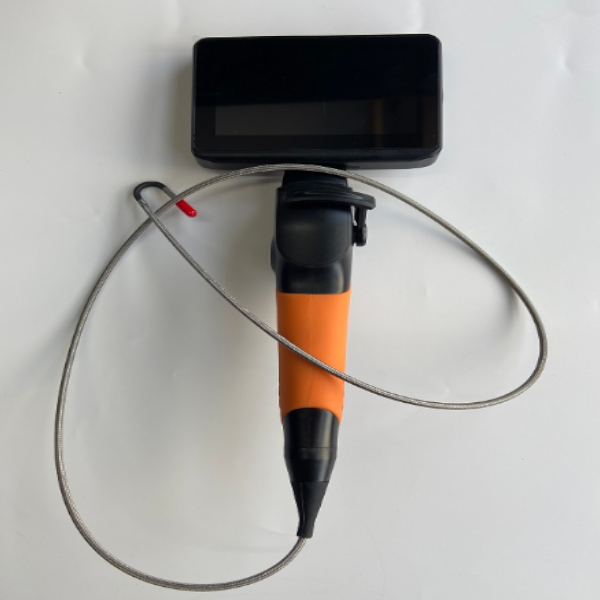

Specifications:
1.Camera, and guide parameters
|
model |
SZCS401T |
||
|
external diameter |
Φ 4.0mm |
Pixel point |
1 MP |
|
Probe length |
15 mm |
Image sensor |
1/9inch |
|
depth of field |
From 10-100 mm |
angle of field |
120 Degrees |
|
Observe the direction |
foresight |
Lighting type |
6 LED light sources |
|
Bend Angle (top / bottom) |
180° |
The joystick controls with Directional direction |
Two directions (top / bottom) |
|
Camera shell |
alloy steel |
Angle lock |
Fixed internal resistance |
|
Insert tube length |
Standard 1 m |
Insert tube material |
Stainless steel wire woven tube |
2. Display screen and system configuration
|
System weight |
Complete equipment, including chassis: 05kg bare machine: <1 kg |
Host size |
12.3 cm X 8.5 cm X 4.4 cm |
|
source |
Lithium battery: 3.7V, 2200 Charging current: Type-C charging port port 5V / 2V |
construction material |
Plastic PC case |
|
LCD |
A 4.5-inch active matrix color display |
aiming |
Manually adjust the 3 gear |
|
The Data I / O port |
NO |
internal storage |
32G High-speed SD Card |
|
Key function |
Menu manipulation, videos, Freeze, enlarge |
white balance |
automatic white balance |
|
Image function |
Image mirror, preview |
linguistic support |
4 languages (Chinese, English, Japanese, Simplified) |
|
image resolution ratio |
1280*720JPG |
Video resolution |
1280*720avi |
3. Working environment
|
Host system operating temperature |
0°C〜40°C |
ambient humidity |
15-90%RH |
|
Video probe operating temperature |
0°C 60°C, below 0°C should reduce boot operations |
waterproof |
Probe and objective lens can withstand IP67 waterproof |
|
storage temperature |
0°C〜60°C |

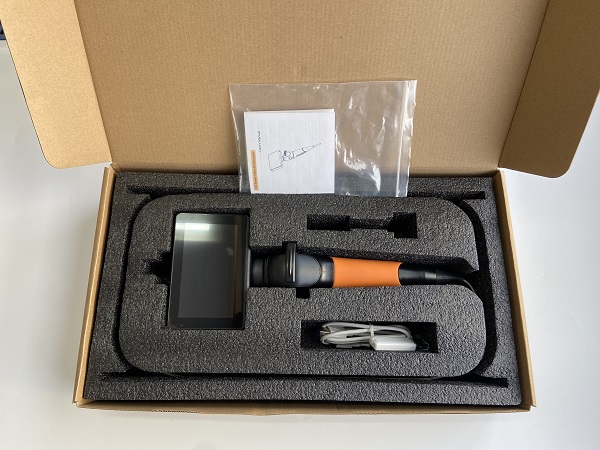

Packaging accessories |
instrument container.instructions.charger.Card reader et al |

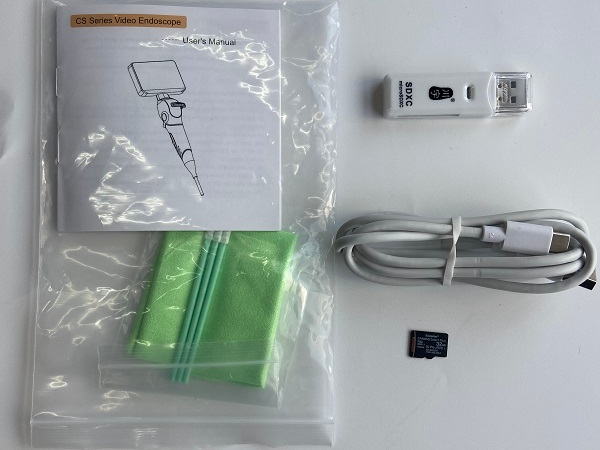

Accessory list:
|
Items |
Specifications |
Qty |
Unit |
|
1 |
Endoscope |
1 |
set |
|
2 |
USB cable |
1 |
pcs |
|
3 |
SD card（32GB） |
1 |
pcs |
|
4 |
Card reader |
1 |
pcs |
|
5 |
Cleaning kit |
1 |
set |
|
6 |
Manual |
1 |
pcs |
