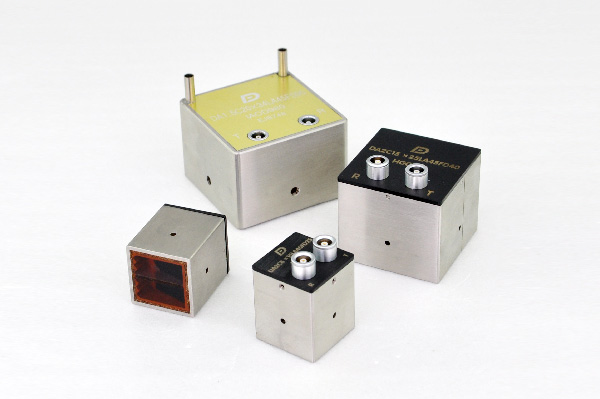

TRL Angle Beam Probe
Independent transmit and receive crystals, refracting ultrasonic beam angles and creates certain focal length in workpiece.
Features&Applications
Features
· No initial pulse dead zone effects；
· Less scattering, higher SNR in high attenuation material；
· Probe face can be processed into different shapes to ensure good coupling with workpiece:
AID(Axial Inside Diameter), CID(Circumferential Inside Diameter),
AOD(Axial Outside Diameter), COD(Circumferrential Outside Diameter)；
· Two types of performance probes can meet most of detection needs.
· PL – Universal Series · C – Composite Series
Applications
· Nuclear Power Station
· Austenitic Stainless Steel
· Near Surface Flaw Detection
· Plate Weld Inspection
· High Attenuation Materials
Specification and Model
Instructions
- C – Composite Series is the default probe type
- Default built-in delay lines, for external delay lines of 3~3.5mm can be customized
- Default probe is without irrigation holes, which can be customized
- FS means Sound Path, FD means Focal Depth, Conversion of FS, FD and β is: Cosβ=FD/(FS+0.5D), where D is diameter
- Lemo 00(C5) Top Mounting Connectors, Side Mounting can be customized
