Probe cable length : 1.0 M(standard), 2m/3m is optional ;

Camera lens diameter :  3.9mm .

Lens Diameter

3.9mm

Snake Tube Material

Elastic Metal Tube

Depth of field

20mm – 70mm

Camera rotation

2 way articulations, Maximum is 210 deg

Field of view

80°

Monitor

4.3” IPS display

Storage

TF card, Max support 32GB

Scope Illumination

6 High brightness LED

CMOS

1/9” CMOS

Pixel

One million

Languages

Chinese,English,French,Spanish,Korean,Japanese,German,Italian,Russian

Picture/video return function

support

Oil/Waterproof standard

IP67

Working temperature

–10 — 50°C

Charging temperature

0—40°C

Temperature protection technology

>70°C,auto power off, when it touches a high temperature (over 70°)power failure protection, avoiding camera broken

Manual Dimming

Support

Power Supply

14.8WH

Function

Camera rotation, light adjustment, photograph, picture recording, Image rotation, zoom(4 times), Temprature display, Sound recording

Accessories

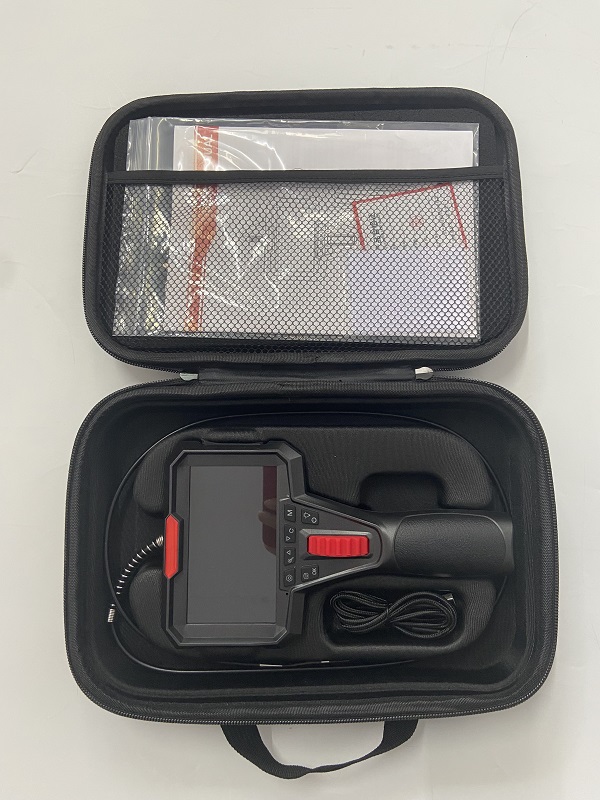

Charger, Manual, USB cable, waterproof tool box

Application

cars, ships, and aircraft engines inspection,gearbox、combustion-chamber deposit、Air conditioning evaporation box cleanliness, etc
